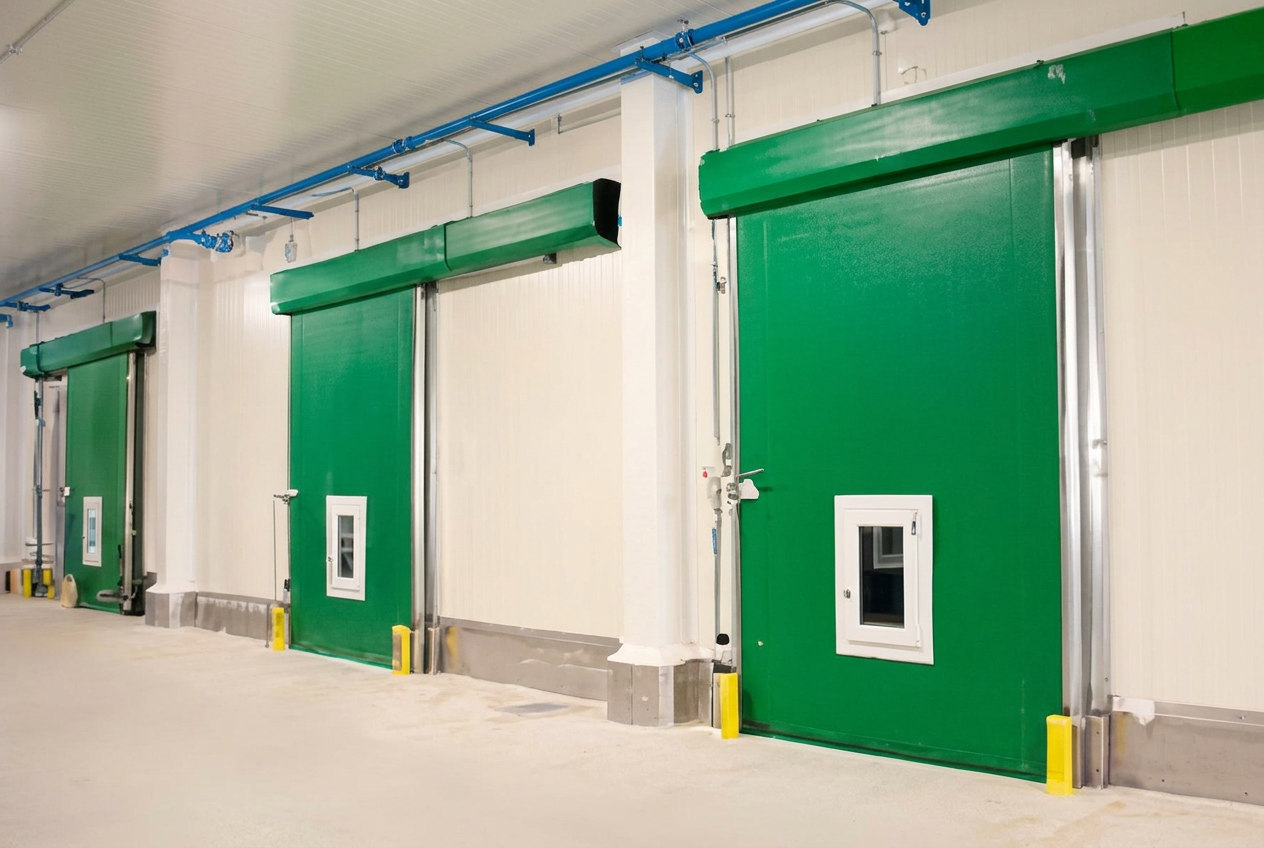

Cold storage & clean rooms
Isocindu panels perform in positive and negative cold rooms, temperature-controlled areas and clean rooms — and their washable surfaces make high hygiene easy to maintain.
Home / Insulated panels
Insulated panels
Insulation and steel in a single panel.
Roof and wall panels with a rigid polyisocyanurate core, from 1½" up to 8" thick — built for cold storage, controlled temperatures and every-day buildings alike.
- Width
- 39⅜"
- Joint type
- Exposed
- Standard length
- 8' up to 54' (subject to transportation limits)
- Joint
- Interconnecting male / female
- Thickness
- 1½" · 2" · 2½" · 3" · 4" · 5" · 6" · 8"
- Exterior face
- Prepainted steel
- Interior face
- Shadowline profile
- Foam density
- 2.49 lb/ft³
- Finish
- Polyester coating, inside and out
Roof panel

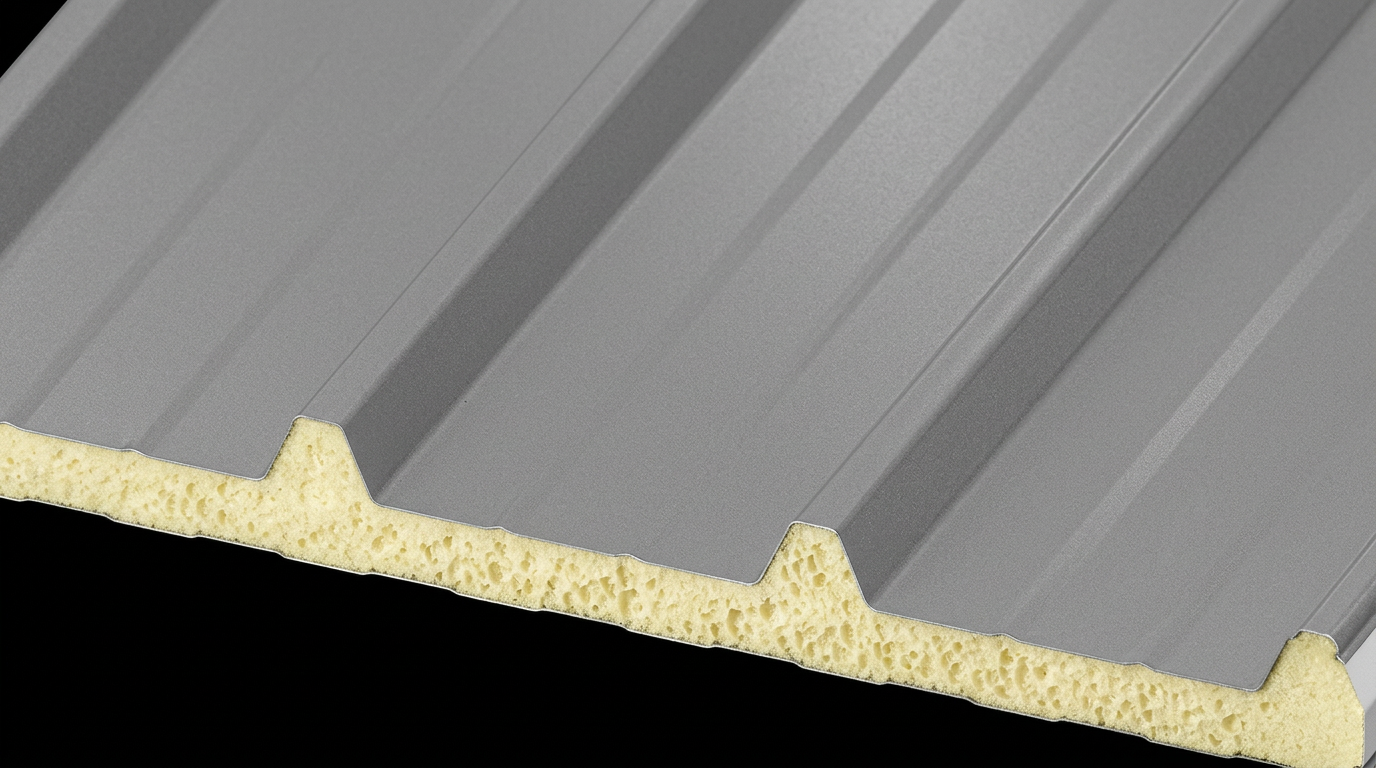

ISOCOP 4
A double-steel roof panel with a rigid polyisocyanurate foam core, made for low-slope pitched roofs. Four trapezoidal ribs per panel add strength against static and dynamic loads, and an exposed fastening system uses saddle clips at each anchor point.
- Rust resistant
- High mechanical strength
- Hygienic, easy-wash surface
- Resists mold and humidity
- Gasket barrier against vapor leaks
- Width
- 39⅜"
- Joint type
- Hidden
- Standard length
- 8' up to 54' (subject to transportation limits)
- Joint
- Interconnecting male / female
- Thickness
- 1½" · 2" · 2½" · 3" · 4" · 5" · 6" · 8"
- Exterior face
- Prepainted steel
- Interior face
- Shadowline profile
- Foam density
- 2.49 lb/ft³
- Finish
- Polyester coating, inside and out
Wall panel · hidden fastening

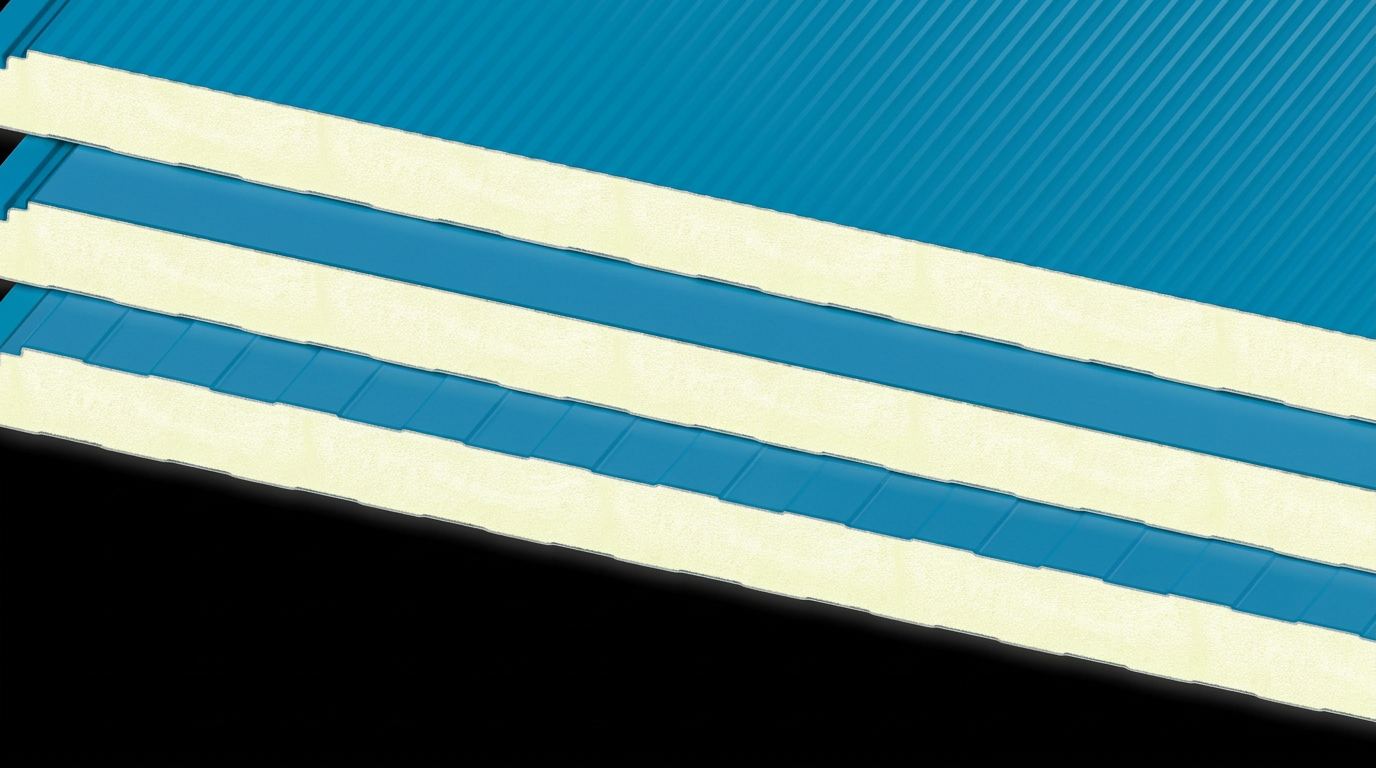

ISOPARETE
A sandwich wall panel with a hidden fixing joint — a clean, high-performance choice for industrial and commercial walls and an ideal fit for cold storage. Combine it with compatible Isoclass and Isoparete wall panels.
- Suited to controlled temperatures
- Gasket barrier against vapor leaks
- High mechanical and puncture resistance
- High thermal resistance
- Up to 8" thick
- Pairs with compatible panels
- Width
- 39⅜" / 45¼"
- Joint type
- Exposed
- Standard length
- 8' up to 54' (subject to transportation limits)
- Joint
- Interconnecting male / female
- Thickness
- 1½" · 2" · 2½" · 3" · 4" · 5" · 6" · 8"
- Exterior face
- Prepainted steel
- Interior face
- Shadowline profile
- Foam density
- 2.49 lb/ft³
- Finish
- Polyester coating, inside and out
Wall panel · box, striated or flat

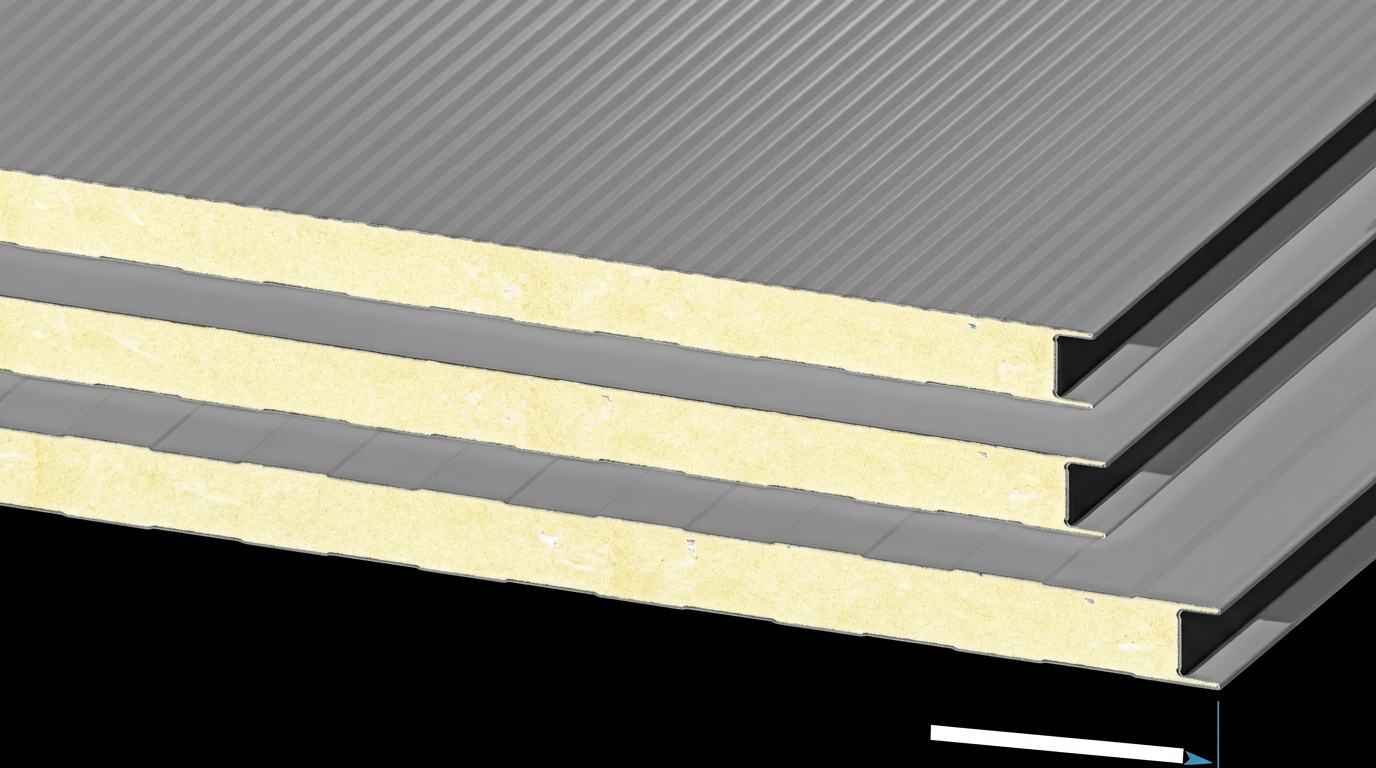

ISOBOX / SUPER ISOBOX
A double-steel wall panel with a polyisocyanurate core and a tongue-and-groove joint finished with concealed fasteners and saddle clips. Exterior faces come in striated, box or flat profiles; the interior is box profile as standard (ask us about other options). Built for industrial walls, interior partitions and cooling chambers — and the 45¼" width is a perfect fit for cold storage.
- Suited to controlled temperatures
- Up to 8" thick
- Available in 45¼" width
- Gasket barrier against vapor leaks
- High mechanical and puncture resistance
- High thermal resistance
Applications
One panel family, many kinds of buildings

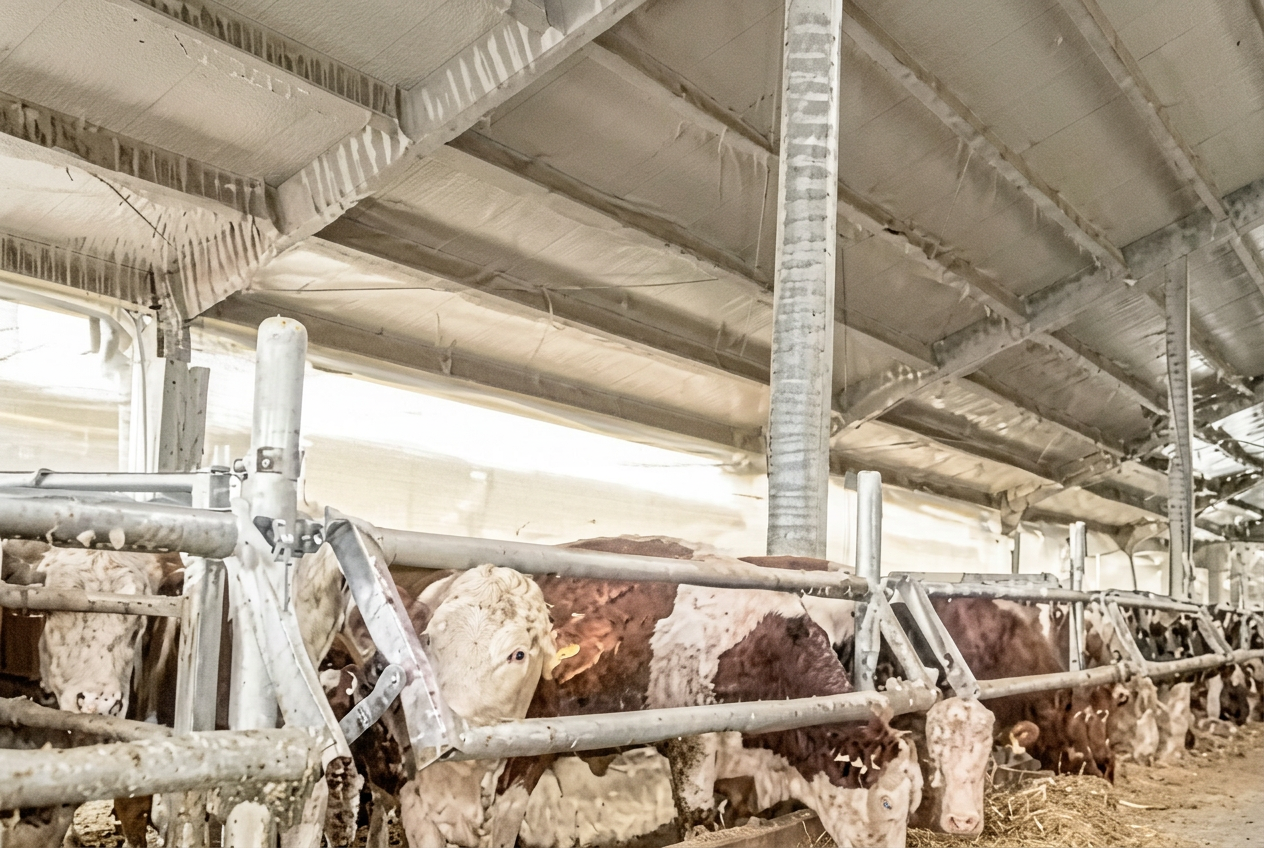

Agricultural & poultry
High thermal insulation and resistance to mold, acids and mechanical movement keep farming and poultry buildings hygienic and safe, while blending into rural settings.

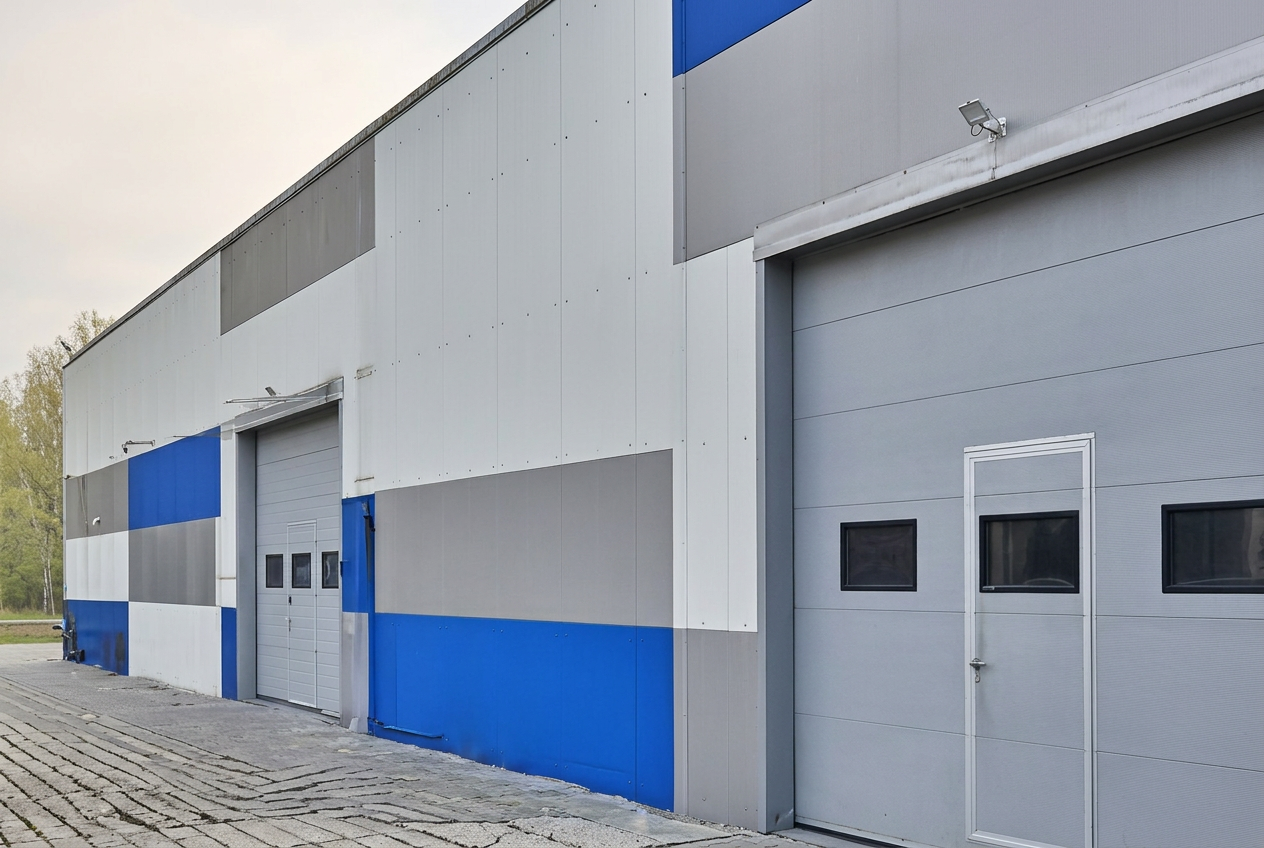

Industrial & warehouses
Lightweight, safe and easy to install, the panels give warehouses and industrial buildings the insulation they need — a sustainable design for industry.

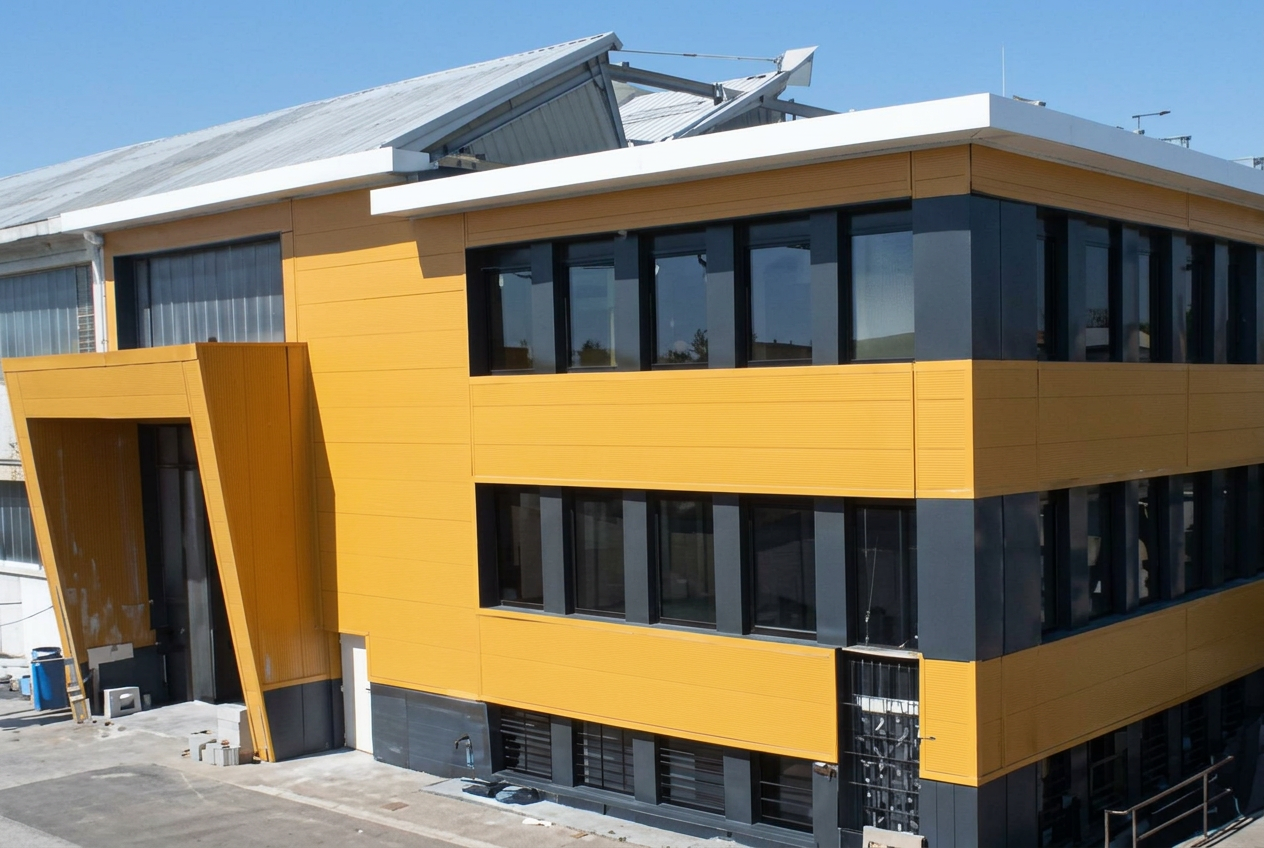

Commercial
Versatile design, safety, insulation and easy assembly let the panel adapt to commercial buildings and showcase your brand.
Residential
Functional panel solutions for homes of every style, combining thermal insulation, safety and good looks with respect for the environment and the surrounding landscape.
Planning a cold room or insulated building?
Tell us the panel, thickness and lengths you need and we'll prepare your quote.
