Steel Decking
EZ 1.5" CONCRETE DECK
EZ 1.5" Composite Concrete Deck features embossed ribs that mechanically bond to the concrete slab, allowing the deck and slab to act as a single structural unit. Ideal for multi-story commercial floors and mezzanines.
- Profile depth
- 1-1/2"
- Net coverage
- 36"
- Rib spacing
- 6" center to center · 6 major ribs
- Gauges
- 24, 22, 20, 18
- Yield strength
- Grade 50 structural steel · 50 ksi
- Finishes
- Galvanized G60/G90
- Bonding & lap
- Embossed ribs and special lap nesting
- Type
- Composite floor deck
- Manufactured at ezMetal’s SDI Plant Certified facilities
- Dimensions and quantities confirmed with your quote
- Continental U.S. freight, plus Houston port export logistics to Mexico, the Bahamas, and Turks & Caicos.

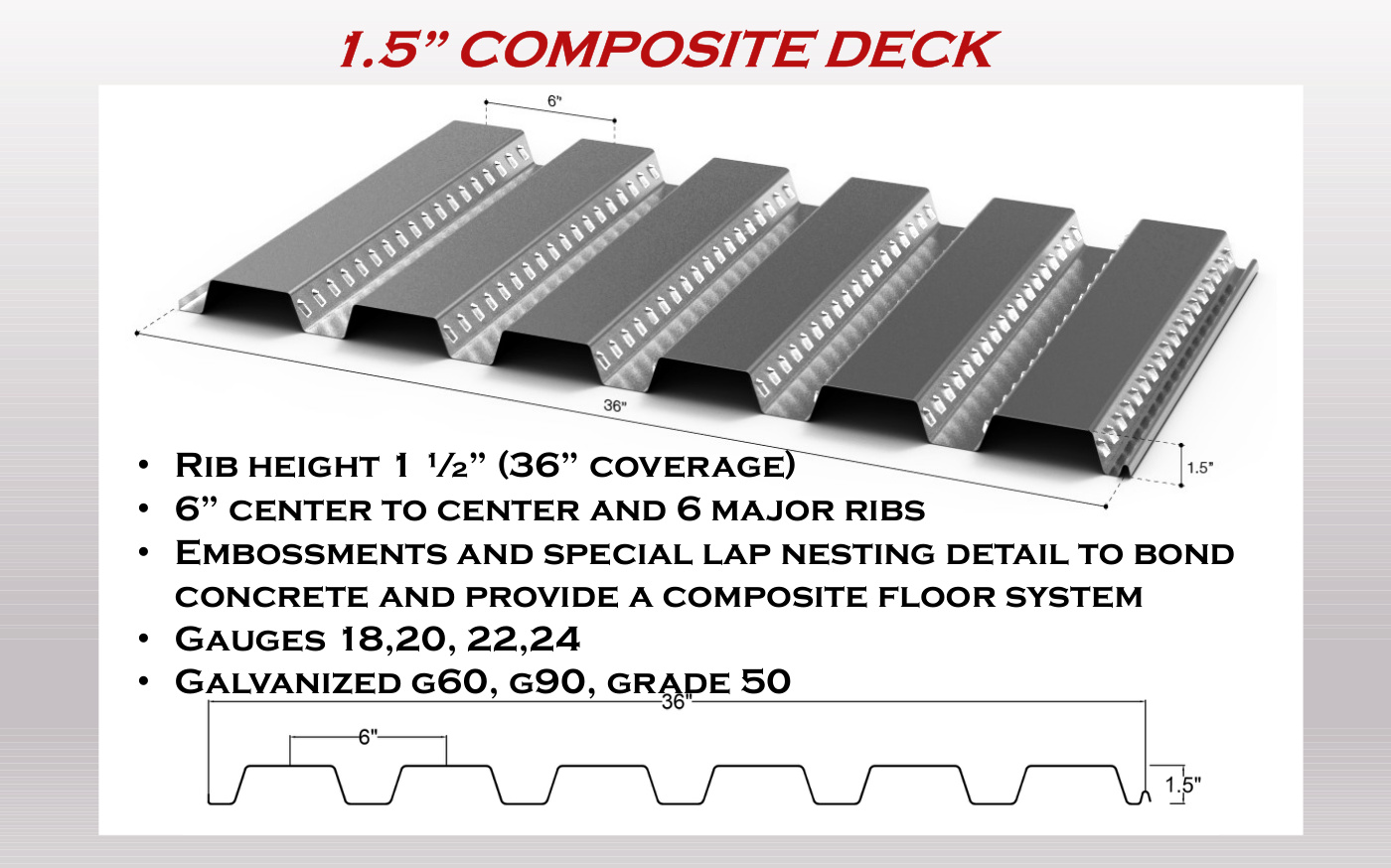

Profile dimensions & lap details
Manufacturer reference drawings. Confirm the selected profile, side-lap and fastening requirements with your engineer of record.
Load tables
Reference values only — confirm with your engineer of record.
