Steel Decking
EZ 2" CONCRETE DECK
EZ 2" Composite Concrete Deck delivers greater unshored spans and higher load capacity than 1.5" profiles, cutting down on temporary shoring and intermediate framing on larger floor plates.
- Profile depth
- 2"
- Net coverage
- 36"
- Rib spacing
- 12" center to center · 3 major ribs
- Gauges
- 22, 20, 18
- Yield strength
- Grade 50 · 50 ksi; 18 GA: Grade 40 · 40 ksi
- Finishes
- Galvanized G60/G90
- Bonding & lap
- Embossed ribs and nested side-lap; see drawing
- Type
- Composite floor deck
- Manufactured at ezMetal’s SDI Plant Certified facilities
- Dimensions and quantities confirmed with your quote
- Continental U.S. freight, plus Houston port export logistics to Mexico, the Bahamas, and Turks & Caicos.

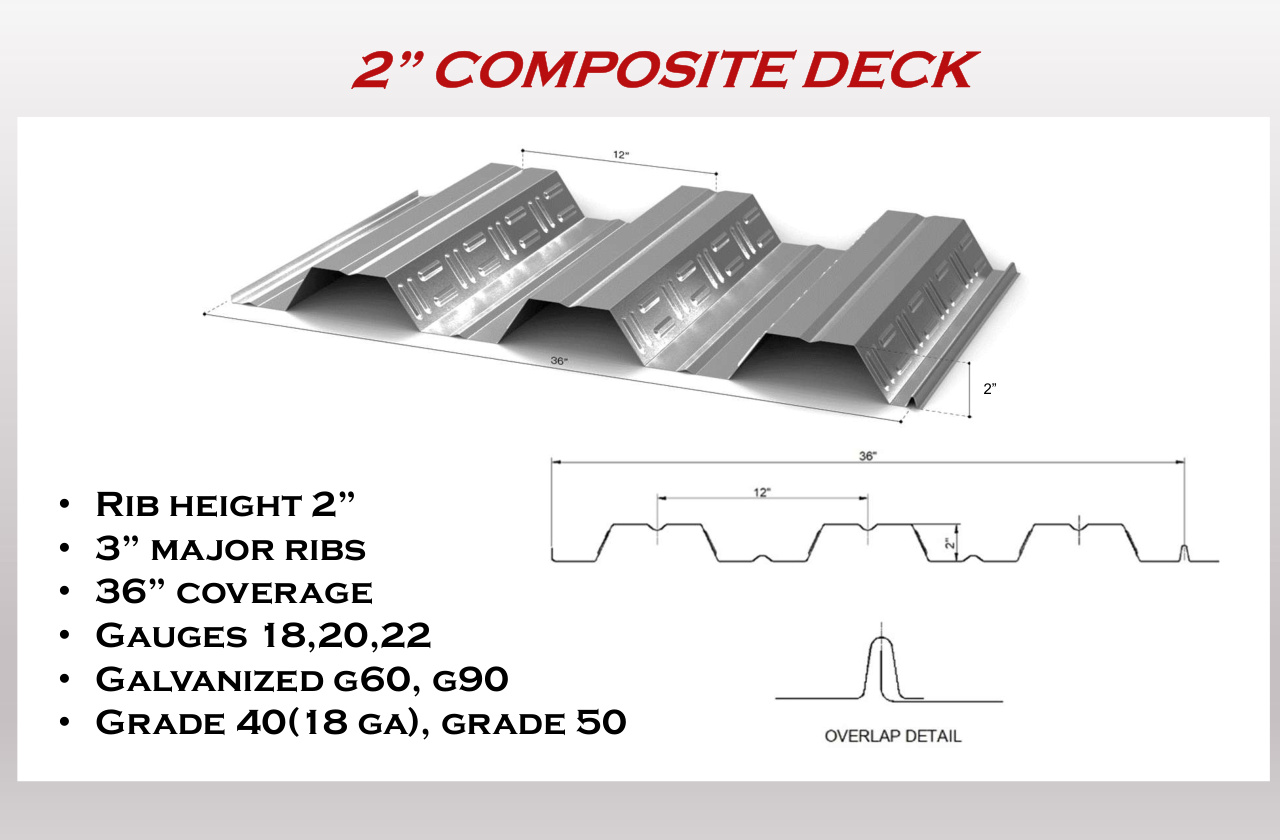

Profile dimensions & lap details
Manufacturer reference drawings. Confirm the selected profile, side-lap and fastening requirements with your engineer of record.
Load tables
Reference values only — confirm with your engineer of record.
