Steel Decking
EZ 3" ROOF DECK
EZ 3" Roof Deck spans further than standard B deck, reducing the number of joists required and speeding up erection on large-footprint roofs such as warehouses and distribution centers.
- Profile depth
- 3"
- Net coverage
- 36"
- Rib spacing
- 12" center to center · 3 major ribs
- Gauges
- 22, 20, 18
- Yield strength
- Grade 50 structural steel · 50 ksi
- Finishes
- Galvanized G60/G90
- Lap detail
- Nested side-lap; see profile drawing
- Type
- Deep rib roof deck
- Manufactured at ezMetal’s SDI Plant Certified facilities
- Dimensions and quantities confirmed with your quote
- Continental U.S. freight, plus Houston port export logistics to Mexico, the Bahamas, and Turks & Caicos.

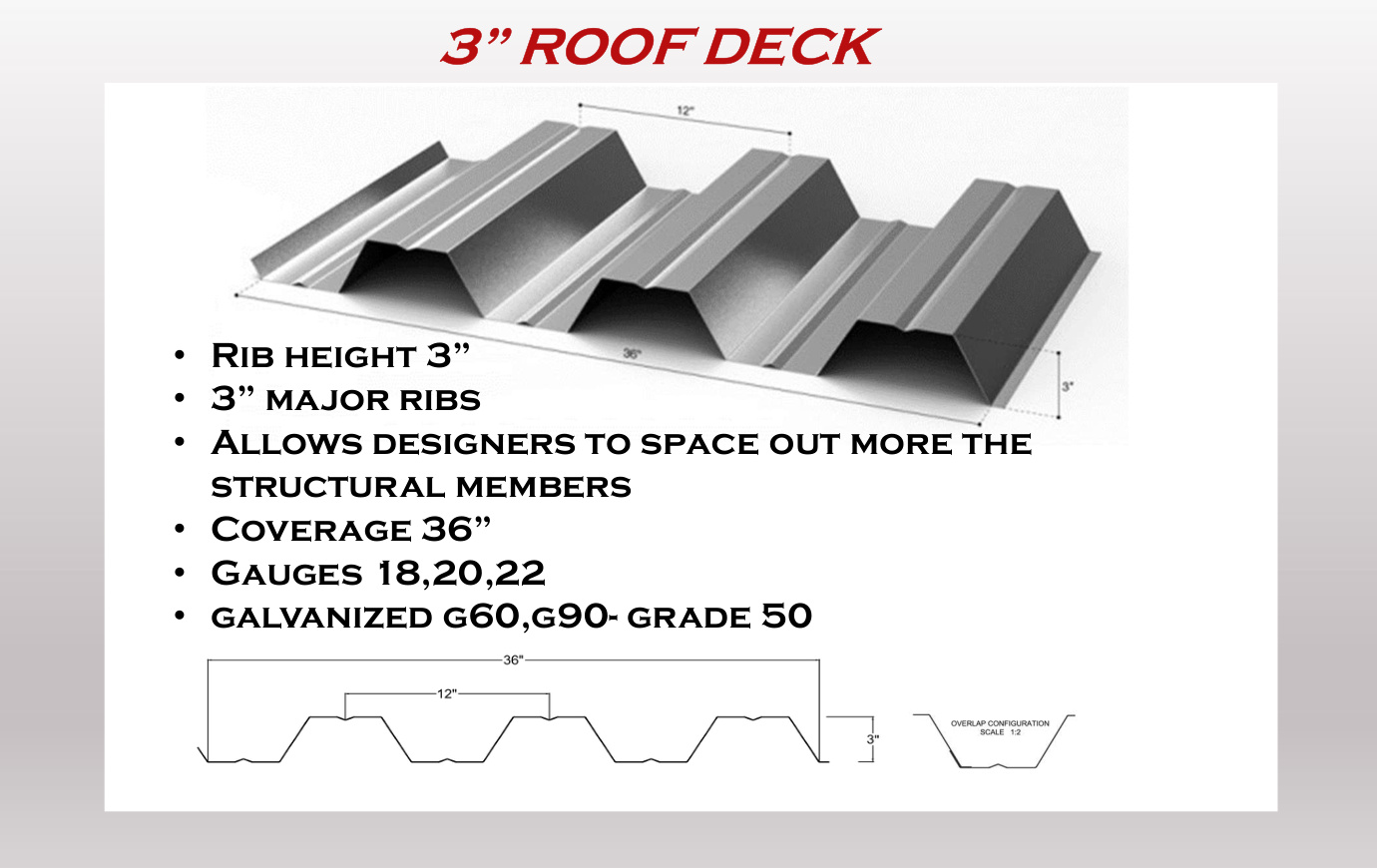

Profile dimensions & lap details
Manufacturer reference drawings. Confirm the selected profile, side-lap and fastening requirements with your engineer of record.
Load tables
Reference values only — confirm with your engineer of record.
